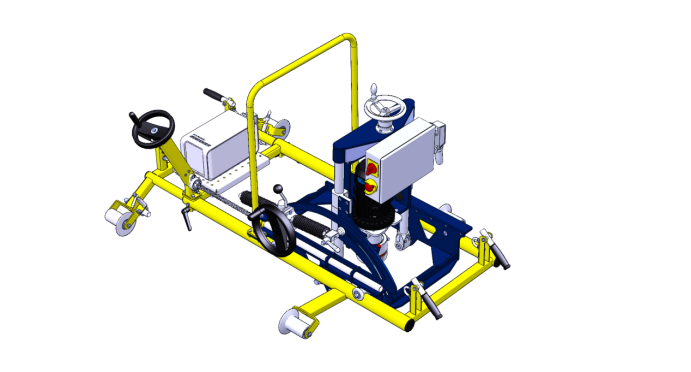

BHT 138 Multifunctional Vertical Grinder
TECHNICAL SPECIFICATION
BHT138(4S) | BHT138(2S) | BHT138(4S) | BHT138E | |
POWER | BERNHARD200 | MINSEL M165 | BERNHARD344 | AKKU BATTERY |
POWER OUTPUT | 5kW@4500rpm | 5kW@4500rpm | 5kW@4500rpm 7kW@3800rpm（adjustive） | 5kW@4500rpm |
DISPLACEMENT | 200cc | 165cc | 380cc | |
GRINDING RANGE | -20°to 80° | -20°to 80° | -20°to 80° | -30°to 90° |
WEIGHT | ≈121kg | ≈121kg | ≈130kg | ≈150kg |
DIMENTIONS | 2400/1140/1020mm | 2400/1140/1020mm | 2400/1140/1020mm | 2400/1140/1020mm |
TRANSPORT LENTH | 2070mm | 2070mm | 2070mm | 2070mm |
GRINDING SPINDLE | 50m/s | 50m/s | 50m/s | 50m/s |
